Discount 60 Gallon Oil Heater
-
Our 60 Gallon Oil Heater is perfect for melting large quantities of material.
- 220V / 4500W Heater Box with Nema 6/30P Plug.
- Extremely easy to set up, clean, use, and maintain.
- Double Jacket prevents burns and hot spots
- Sloped bottom increases efficiency and reduces clean up
- Made in the USA.

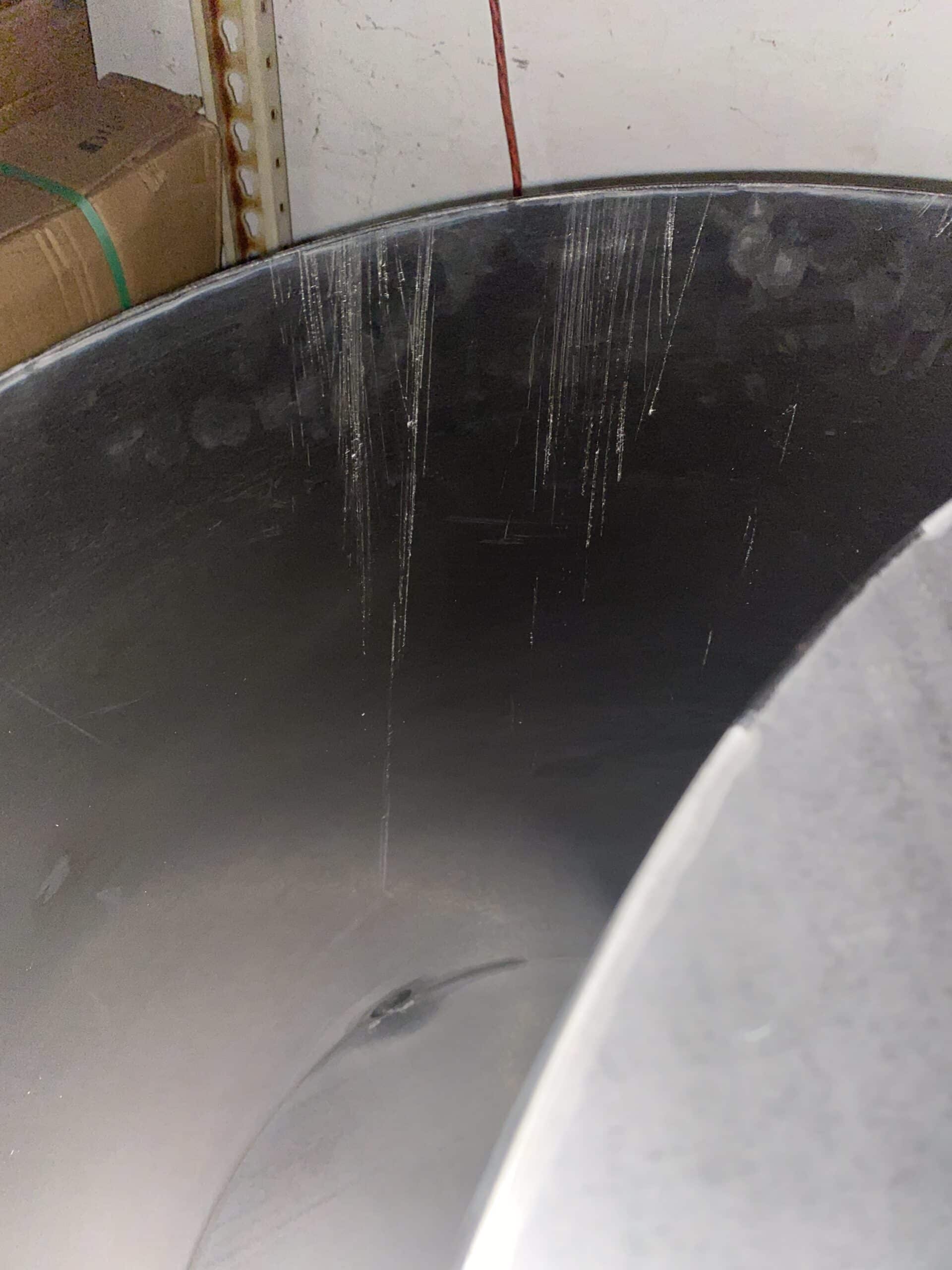

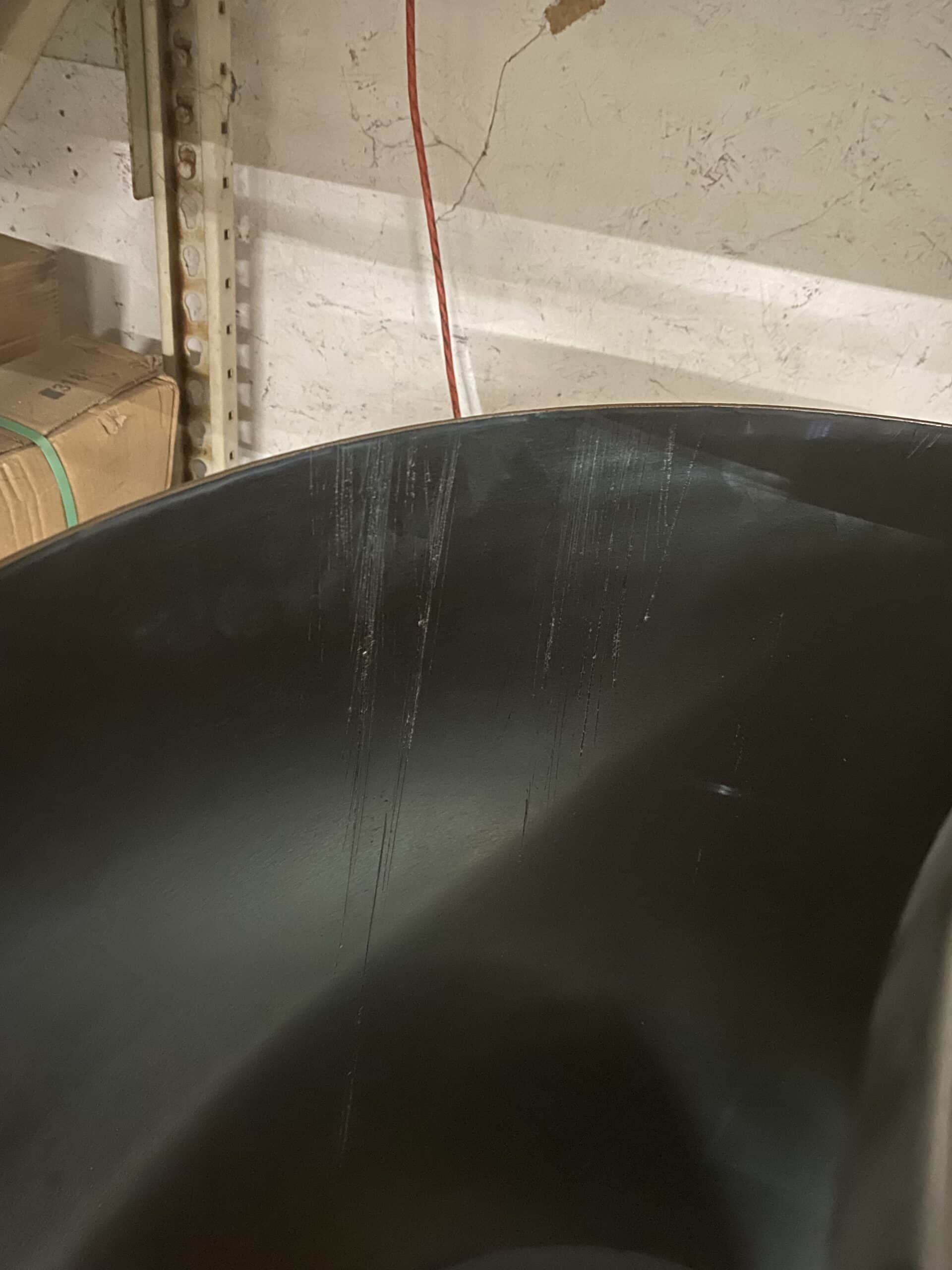

Discounted due to cosmetic damage (scratches). These do not affect the integrity of the tank.
From: $2,412.00
Build Your Oil Heater System
Included
- Thermostat, Element and Power Cord
- Sloped bottom for faster drainage
- Extra element for backup
- 1.5″ (38mm) Poly Three-Way Ball Valve
- Lid with molded high-temp handle.
- ½” (13mm) inlet and outlet for quick cooling
- UL approved components
- Outlet and valve cleaning brush
- Full set of easy to follow instructions with production tips
Specifications
- Exterior: 33″ (84cm) H x 28″ (71cm) D
- Inner Jacket Capacity: Approx. 60 gallons (227L)
- Water Jacket Volume: approximately 21.8 gallons (82.47L)
- 220 Volt, 4500 watt
- 50°F to 250°F (10°C to 121°C)
- Current draw is about 21 amps at 220 volts
Heater Box Plug Type & Amps
| 120V / 1500W | 220V / 3000W | 220V / 4500W | |
| Plug Type | 5-15P Standard | Nema 6/20p | Nema 6/30p |
| Amperage | 12.5 amps | 14 amps | 21 amps / ea |
| Diagram |
|
|
|
